PBL Make Right Angle Helical Worm C Series Gear Box

Name: PBL Make Right Angle Helical Worm C Series Gear Box
Brand: Bisu Transmission
Price: 5000 INR
Availability: InStock

5000 INR/Unit

Get a Price/Quote

Product Details:

Torque Up to 8,500 Nm
Voltage 230V / 415V
Bearing Type Heavy Duty Ball/Roller Bearing
Pressure Standard Atmospheric
Rated Voltage 230V / 415V
Power Rating 0.12 kW to 55 kW
Motor Type Helical Worm Gear Motor
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PBL Make Right Angle Helical Worm C Series Gear Box Price And Quantity

Price 5000 INR/Unit
Minimum Order Quantity 20 Unit

PBL Make Right Angle Helical Worm C Series Gear Box Product Specifications

Color Blue / Grey
Motor Type Helical Worm Gear Motor
Starting Type Electric Start
Mounting Type Foot / Flange / Universal
Ambient Temperature -10C to +50C
Features Right Angle Helical Worm Combination, Compact Design, High Durability, High Load Capacity, Maintenance Friendly
Rated Frequency 50 Hz
Power Variable, up to application
Rated Voltage 230V / 415V
Shaft Diameter 19 mm to 100 mm
Power Rating 0.12 kW to 55 kW
Product Type Three Phase Helical Worm Geared Motor
Pressure Standard Atmospheric
IP Rating IP55
Phase Single Phase
Speed Up to 350 RPM
Voltage 230V / 415V
Torque Up to 8,500 Nm
Frequency (MHz) 50/60 Hz
Bearing Type Heavy Duty Ball/Roller Bearing
Efficacy High Efficiency
Weight Depends on model (Approx. 20-500 kg)
Horse Power 0.18 HP to 75 HP
Output Power Up to 55 kW
Dimension (L*W*H) Varies as per gearbox size
Poles Number 2 / 4 Poles
Cooling Method Natural Air Cooled
Standard IS & International Standards
Noise Level Low Noise
Current Type AC
Protect Feature IP55 Protection
Warranty 1 Years
Sealed Type Mechanical Seal

PBL Make Right Angle Helical Worm C Series Gear Box Trade Information

Delivery Time 10 Days
Main Domestic Market All India

Product Description

We are specialized in providing a wide array of Three Phase Helical Worm Geared Motor. It is applicable for lifting, conveyor and dying purpose. This motor is made with a solid construction to prevent rust and chemical resistant. It is strong enough to withstand on any ambient weather situation. Three Phase Helical Worm Geared Motor has the characteristics of large speed variation range and convenient installation. It is safe and reliable in nature.

Precision Engineering for Maximum Performance

This right angle helical worm gearbox integrates advanced gear technology, combining helical and worm gears for high torque outputs of up to 8,500 Nm. Its heavy duty bearings and robust construction ensure reliable operation, even under demanding industrial conditions. Enhanced heat dissipation fins and oil bath lubrication keep the gearbox running efficiently with minimal maintenance requirements.

Flexible Installation and Enhanced Compatibility

Available in IEC standard flange sizes and multiple mounting options, this gearbox adapts to horizontal or vertical setups. Its versatility makes it ideal for a range of machinery, from material handling systems to packaging equipment. Foot, flange, or universal mounting caters to project-specific requirements, while a wide ambient temperature range suits variable working environments.

High Durability and Low Maintenance

Built with high-grade cast iron housing and precision gears, this gearbox delivers lasting durability. Designed for low backlash and quiet operation, routine oil bath lubrication further extends service intervals. The IP55-rated enclosure provides protection against dust and splashes, ensuring dependable long-term performance in industrial settings.

FAQ's of PBL Make Right Angle Helical Worm C Series Gear Box:

Q: How is the PBL Right Angle Helical Worm C Series Gear Box installed?

A: This gearbox supports both horizontal and vertical installation positions. It is compatible with foot, flange, or universal mounting options in IEC standard sizes, allowing flexible integration into various machinery configurations.

Q: What applications are suitable for this gearbox?

A: The gearbox is ideal for conveyors, mixers, material handling systems, packaging equipment, and a wide range of industrial machinery. Its rugged design and high torque capabilities make it versatile for different sectors.

Q: When should oil bath lubrication be maintained or checked?

A: It is recommended to check the oil bath lubrication periodically, typically during scheduled machinery maintenance. Regular oil level and quality inspections help ensure optimal gearbox performance and longevity.

Q: Where can this gearbox be effectively used?

A: It can be used across industrial facilities throughout India, including manufacturing plants, processing units, and material handling sites, wherever dependable right angle gear transmission and high load capacity are required.

Q: What are the key benefits of using this gearbox?

A: Key benefits include low backlash, quiet operation, enhanced cooling, high torque output (up to 8,500 Nm), high efficiency, compact design, easy maintenance, and robust IP55 protection against environmental factors.

Q: How does the gear ratio and speed variation affect usage?

A: Gear ratios up to 70:1 allow optimized speed and torque for different processes. Multiple speed variations (up to 350 RPM) can be tailored as per application requirements, providing flexibility in drive performance.

Q: What warranty and protection features are included?

A: The gearbox comes with a 1-year warranty and features IP55-rated mechanical sealing, safeguarding the internal components against dust and water, thereby ensuring reliable operation and reduced maintenance costs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Worm Geared Motor' category

PBL Industrial Three Phase Worm Geared Motor Price : 15000.00 INR/Unit Minimum Order Quantity : 1 Sealed Type : Mechanical Seal Phase : Single Phase Color : Blue Starting Type : Electric Start Current Type : AC Protect Feature : Other, Totally Enclosed Fan Cooled (TEFC) Output Power : Up to 7.5 kW Horse Power : 0.25 HP to 10 HP Poles Number : Other, 2/4/6 Poles Standard : IS:325/IEC Cooling Method : Fan Cooled Noise Level : Low Noise Dimension (L*W*H) : Varies with model Efficacy : High Efficiency Weight : Varies with model Torque : Up to 350 Nm Frequency (MHz) : 50 Hz Voltage : 415 V Bearing Type : Deep Groove Ball Bearing Pressure : Other, Standard Atmospheric IP Rating : Other, IP55 Speed : Up to 1440 RPM Power : 0.18 kW to 7.5 kW Rated Voltage : 415 V Shaft Diameter : Varies with model Product Type : Other, Industrial Three Phase Worm Geared Motor Power Rating : 0.18 kW to 7.5 kW Mounting Type : Foot/Flange/Universal Motor Type : Worm Geared Motor Features : Robust design, low maintenance, corrosion resistant, smooth & quiet operation Rated Frequency : 50 Hz Ambient Temperature : 15C to 40C

Send Inquiry

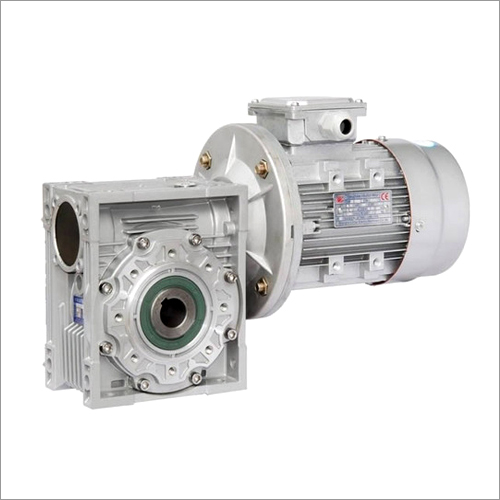

PBL Three Phase Worm Aluminum Geared Motor Price : 5000 INR/Unit Minimum Order Quantity : 20 Sealed Type : Mechanical Seal Phase : Single Phase Color : Sliver Starting Type : Electric Start Warranty : 1 Years
